105kVA Three Phase Dry Type Isolation Transformer 480V/600V to 380V Dyn11 Open Type IP00 UL Listed

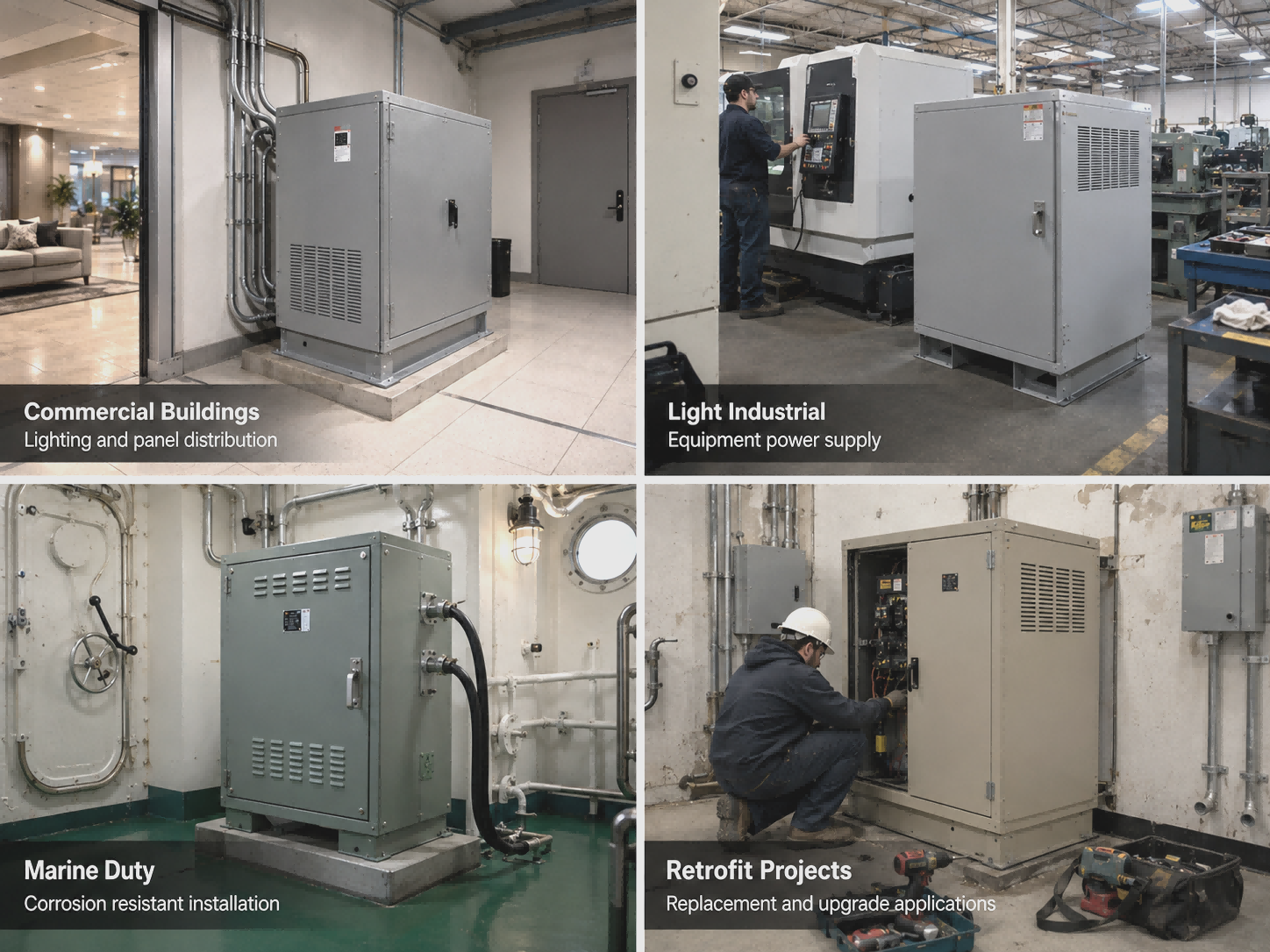

This 105kVA three phase isolation transformer is suitable for industrial equipment, machinery power conversion, control systems, and protected indoor distribution points where 480V or 600V primary voltage needs to be converted to 3/N~380V secondary voltage.

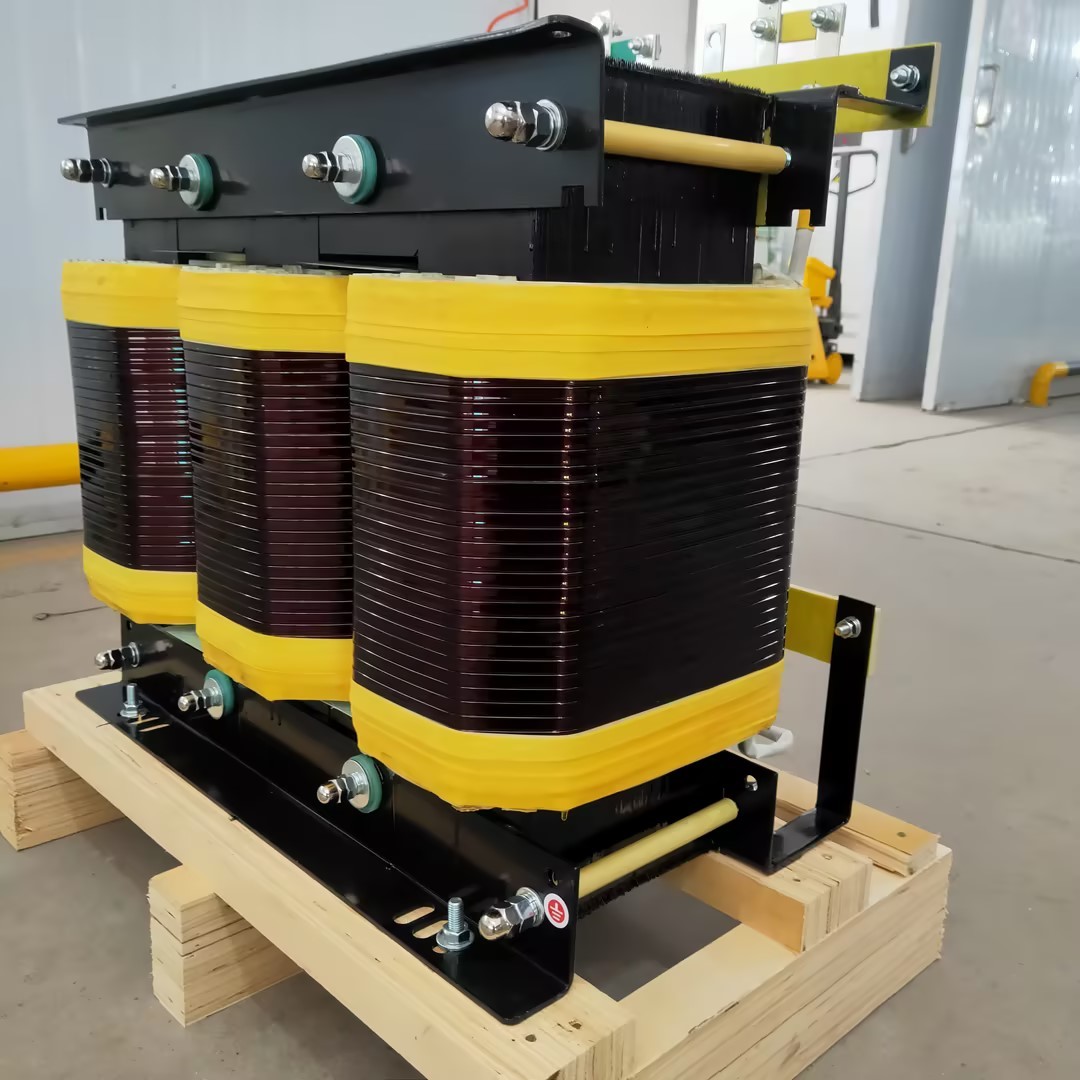

Built as an IP00 open type dry-type transformer, the unit uses Class H insulation, copper windings, AN cooling, and a front-accessible terminal layout with 480V and 600V primary tap markings. Its 60Hz design, D/yn11 connection group, 2.5–5% short-circuit impedance, and 620×440×650mm compact structure help buyers match equipment integration, panel installation, and specification review requirements. For projects requiring 105kVA 480V/600V to 380V conversion, this transformer is ready for quotation, drawing confirmation, and technical review.

Standard Features

• 480VAC / 600VAC primary input terminals
  The primary terminal area is marked for 480V and 600V input, helping match different incoming power conditions.
• 3/N~380VAC secondary output
  Provides three phase 380V output with neutral connection for equipment or systems requiring 380V supply.
• H1-H2-H3 primary terminal identification
  Clear primary terminal labels support wiring identification and specification checking.
• X1-X2-X3-X0 secondary terminal identification
  Secondary output terminals include phase and neutral connection points for 3/N~380V output.
• IP00 open type construction
  Designed for protected installation inside an enclosure, cabinet or electrical room.
• Copper winding material
  Provides reliable conductivity and supports stable current carrying performance in industrial applications.
